Troy Bridge Plug

Wireline Set  (Top Set)

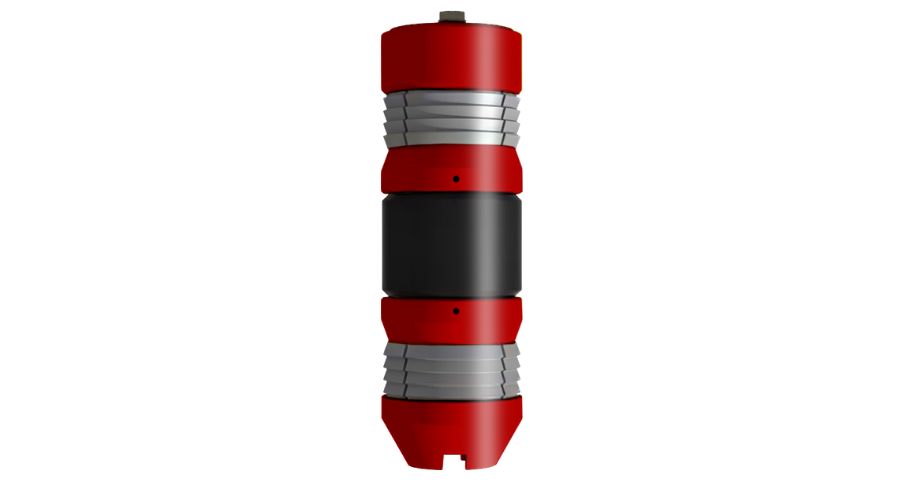

The Troy Bridge Plug has proven to be a product that can be depended on. It has excellent running characteristics and secure sets. The plug can be set on different types of wireline pressure setting tools.

The Troy is designed for rapid drill-out while maintaining sufficient strength during the set. This plug sustains high pressures and temperatures.

Features

  • Electric wireline set
  • Drillable
  • Cast iron construction
  • One piece slips – hardened to depth of wicker only
  • Sets in any grade casing including P-110
  • Form-fitting metal back-ups prevent rubber extrusion
  • For temporary or permanent service
  • Ratcheting lock ring holds setting force

Specifications

CASING PLUG SETTING RANGE SETTING TOOL
OD WT. (LBS/FT) PART NO. O.D. MIN. MAX. BAKER GO
2 3/8 3.3-5.9 000-1710-002 1.71 1.867 2.107 05
2 3/8 3.3-5.9 000-1710-000 1.71 1.867 2.107 1 11/16
2 7/8 6.4-6.5 000-2100-002 2.10 2.280 2.563 05
2 7/8 6.4-6.5 000-2100-000 2.10 2.280 2.563 1 11/16
2 7/8 6.4-6.5 000-2100-000 2.10 2.280 2.563 2 1/8
3 1/2 5.7-10.2 000-2750-002 2.75 2.867 3.258 05
3 1/2 5.7-10.2 000-2750-000 2.75 2.867 3.258 10
3 1/2 5.7-10.2 000-2750-000 2.75 2.867 3.258 1 11/16
3 1/2 5.7-10.2 000-2750-000 2.75 2.867 3.258 2 1/8
3 1/2 12.7 000-2500-002 5.00 2.625 2.750 05
3 1/2 12.7 000-2500-000 2.500 2.625 2.750 1 11/16
4 5.6-14 000-3120-002 3.12 3.340 3.732 10 2 1/8
4 1/2 9.5-16.6 000-3500-002 3.50 3.826 4.090 10 3 1/2
4 1/2 9.5-13.5 000-3710-002 3.71 3.920 4.560 10 3 1/2
5 11.5-21 000-3710-002 3.71 3.920 4.560 10 3 1/2
5 1/2 13-25 000-4240-002 4.24 4,580 5.047 20 3 1/2
5 3/4 22.5-25.2 000-4240-002 4.24 4.580 5.047 20 3 1/2
6 14-26 000-4750-002 4.75 5.140 5.595 20 3 1/2
6 5/8 34 000-4750-002 4,75 5.140 5.595 20 3 1/2
6 10.5-12 000-5340-002 5.34 5.595 6.366 20 3 1/2
6 5/8 17-34 000-5340-002 5.34 5.595 6.366 20 3 1/2
7 23-40 000-5340-002 5.34 5.595 6.366 20 3 1/2
6 5/8 17-22 000-5610-002 5.61 5.989 6.655 20 3 1/2
7 17-35 000-5610-002 5.61 5.989 6.655 20 3 1/2
7 5/8 20-39 000-6090-002 6.09 6.625 7.263 20 3 1/2
8 5/8 24-49 000-6960-002 6.96 7.511 8.248 20 3 1/2
9 5/8 29.3-53.5 000-7710-002 7.71 8.435 9.063 20 3 1/2
10 3/4 54-81 000-8710-002 8.71 9.250 9.784 20 3 1/2
10 3/4 32.7-51 000-9500-002 9.50 9.850 11.150 20 3 1/2
11 3/4 38-60 000-9500-002 9.50 9.850 11.150 20 3 1/2
13 3/8 77-102 000-1156-002 11.56 11.633 12.464 20 3 1/2
13 3/8 48-72 000-1200-002 12.00 12.347 12.715 20 3 1/2
16 65-109 000-1425-002 14.25 14.688 15.250 20 3 1/2
18 5/8 76-96.5 000-1725-002 17.25 17.655 18.730 20 3 1/2
20 133-169 000-1725-002 17.25 17.655 18.730 20 3 1/2
